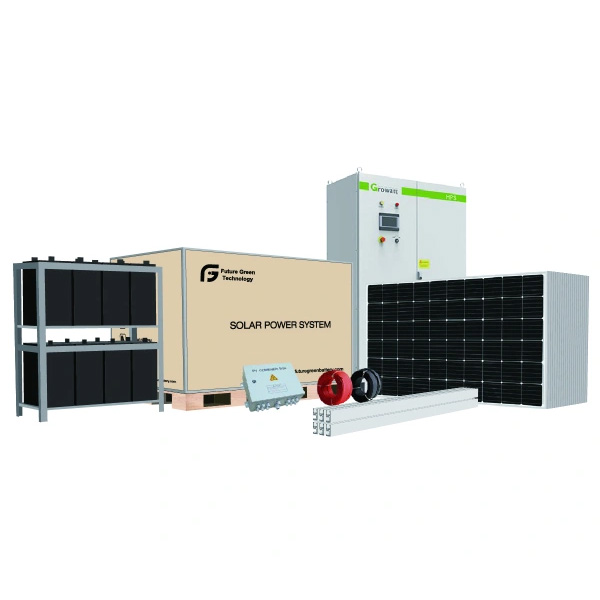

All in One Home Use 10kw Solar Power Panel System

No middlemen
Quote in 2 minutes
All in one package
Full solution

info@futuregreenbattery.com

Mobile/Wechat/WhatsApp: +8614737539687

Mobile/Wechat/WhatsApp: +8618718914921

All in One Home Use 10kw Solar Power Panel System
System introduction additional page.pdf
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification
  1. All Systems have an LCD digital display that allows you to see the system working, (eg) Charge data, System voltage, Daily power consumption, and temperature.
  2. All type of BPS systems both has AC and DC output.
  3.  All systems have the automatic switch. If the mains power goes off the system will switch automatically over to battery power when the mains power resumes the system will switch back automatically. The batteries will resume recharging automatically.
  4.  All inverters are Pure Sine Wave inverters. This allows the use of Air Conditioners and refrigerators without any problem.
  5. Each component has a single chip detector. Assembled by the IPM or IGBT of Mitsubishi. This protects the system from overloads, Low Voltage and Under Voltage (alarm) Over Heating, Short circuits, and Reverse Polarity.
  6. Your system can be updated very easily. Just by adding extra components, your system will increase power capacity.
  7.  Battery optional, you can purchase from us or locally.
  8. Simple to install, just follow installation instructions.
  9. Our System offers Cutting Edge Technology, State of Art Quality with Greater Functionality than our competitors, at competitive prices.
10kW Off-Grid(with grid switch) Solar Power Supply System Quotation
Available load
Equipment QTY Load(W) Time(h) Power(WH)
LED 10 18 5 900
Printer 1 150 1 150
Computer 3 100 5 1500
TV55' 1 250 6 1500
Microwave oven 1 2000 0.5 1000
Pump 1 400 1 400
180L Fridge 1 50 24 1200
Washer 1 300 1.5 450
1P Air-condition 2 800 10 16000
Total 　 　 　 23100Wh
Solar Panel 24 Pieces 　 Type: Monocrystalline Silicon PV Module
Max Power: 400W
Vmp: 40.9V; Imp: 9.79A
Size: 1979*1002*40 mm
Weight: 25kg/pcs
25 years power output guarantee
Controller 1 Set 　 PV Charging Controller 96V 60A;
MPPT high-efficiency charging controller, intelligent control; Temperature compensation, various protections.
Inverter 1 Set 　 DC96V input, AC220V/110V 1-phase output 50/60Hz;
Rated Output Capacity: 8000W
Pure sine-wave output, off-grid type
Protections: Short circuit, overload, surge current, over temperature, over/under voltage, lightning, reverse polarity.
Battery 8 Pieces 　 12V/200AH per piece
AGM valve-regulated lead-acid battery,deep cycle, fully sealed, free maintenance type
Service Life: 5~6 years
Solar Panel Rack 1Set 　 Roof type mounting rack including complete fittings, aluminum alloy (Rack can be customized per request)
Cables 1Set 　 International standard, with specification suitable for solar system, BV1*4 series and 1*10 series
Details Images

All in One Home Use 10kw Solar Power Panel System

Packing & Delivery

All in One Home Use 10kw Solar Power Panel System

Project Review

All in One Home Use 10kw Solar Power Panel System

FAQ

Q1: How to choose the right Home Power System?

A1:Tell us your demand, then our engineer will design a suitable system for you.
Q2: What's the difference between the Off-grid system and On-grid?
A2: Off-the-grid homes are autonomous, and are able to operate completely independently of all traditional public utility services. Grid-tied, on-grid, utility-interactive, grid intertie and grid back feeding are all terms used to describe the same concept - a solar system that is connected to the utility power grid.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty for the system?
A4: One-year warranty on FGET-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
