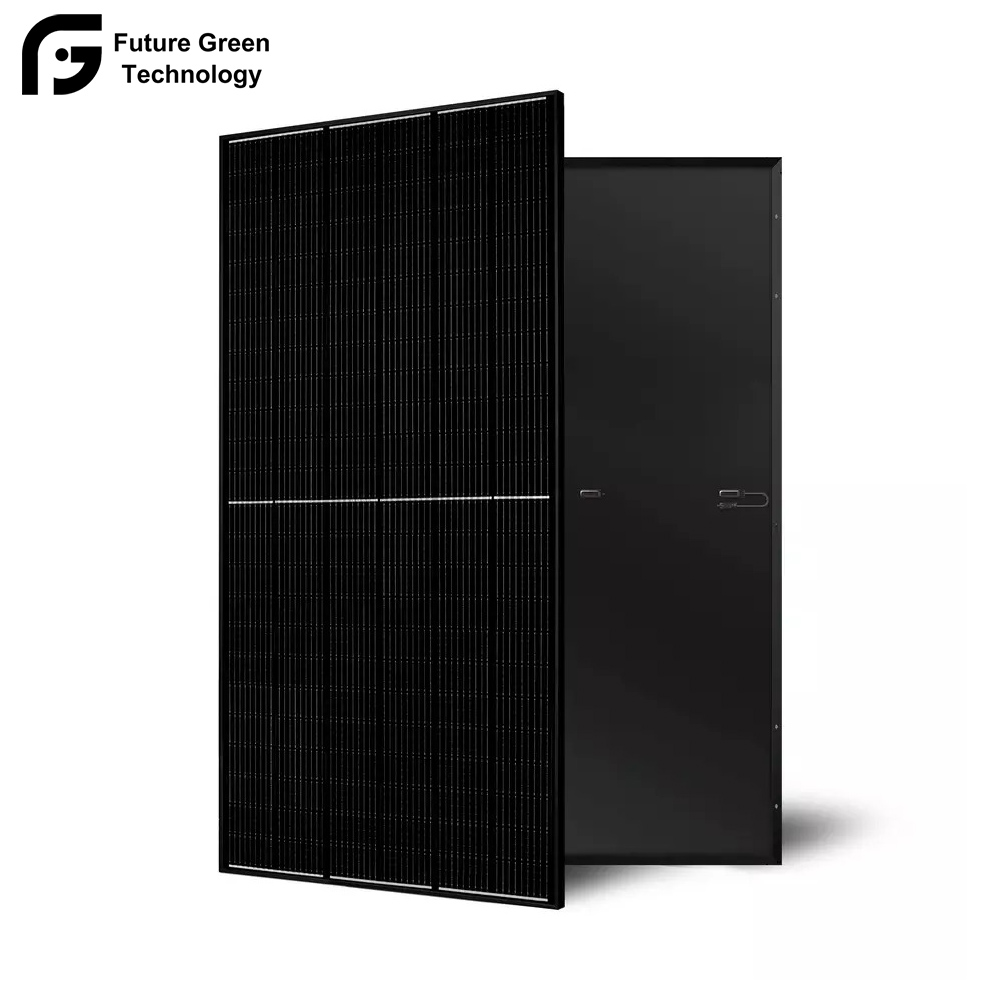

Full Black Mono 400W 450W Half Cell Solar Panel in China

  • Max. Power: 450W
  • Cell size: 182mmx182mm
  • Type: Half Cell, PERC Panel
  • Panel Dimensions: 1908×1134×35mm

info@futuregreenbattery.com

Mobile/Wechat/WhatsApp: +8614737539687

Mobile/Wechat/WhatsApp: +8618718914921

Full Black Mono 400W 450W Half Cell Solar Panel in China
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Specification

Full Black Mono 400W 450W Half Cell Solar Panel in China

Key Advantages

1. 144 monocrystalline half-cut PERC cells 182 x 91 mm, higher efficiency
2. All Black Design, nice appearance, reduce light pollution
3. Junction box Certified according to IEC 62790, IP 68 approved, 3 bypass diodes
4. Glass High transmission, Low iron, Tempered, ARC, Transparent, 3.2 mm



Datesheet:



Type
Mono
Power
450W
Size
1908×1134×35mm
Effectiveness
20.70%
Maximum working voltage
35.07V
Maximum working current
12.83A
Open circuit voltage
42.43V
Open circuit current
13.54A



Place of Origin: Guangdong, China Brand Name: FGET
Model Number: FG450W Cell size: 182mmx182mm
Type PERC Panel Dimensions: 1908×1134×35mm
Panel Efficiency:

20.6%

 Certificate: CE,ISO
Warranty: 10 years No. of cells: 120 cells arrangement
Packing: 32PCS/pallet;Packing size:1908×1134×35MM Solar cell: Mono Cell 182*182mm



Series:



Module Plus
FG 400W
FG 450W
FG 500W
FG 550W
FG 600W
Module power (Pmax)
W
400
450
500
550
600
Open circuit voltage (Voc)
V
37.99
42.43
46.83
41.81
55.67
Short circuit current (Isc)
A
13.44
13.54
13.63
16.79
13.76
Maximum power voltage (Vmpp)
V
31.4
35.07
38.07
34.55
46.01
Maximum power current (Impp)
A
12.74
12.83
12.92
15.92
13.04
Module efficiency
%
20.51
20.70
21.06
21.28
21.48
Module size
mm
1724*1134*35
1907*1134*35
2094*1134*35
2279*1134*35
2464*1134*35
Cell Qty
Pcs
108
120
132
144
156
Cell Type
mm
MBB-182×91mm(Mono-Crystalline Silicon)



Detailed Introduction


PERC mono solar cells

> High efficiency MBB PV cell

> Uniform color

> Anti-PID

Glass

> Ture clear low iron glass

> Module efficiency is increased 2%

> Self-clean function

Frame

> Stock-size

> Silvery and black

> thickness 30/35/40/45/50mm

Humanized design

> More protection

> Prevent from scratching the hand



Junction box

> Quality diode ensures module running safety

> IP67 protection level

> Heat dissipation

Back sheet

>Low moisture permeability against snail trail defect
>High system voltage up to 1500v
Product Packaging

Product Size: 2279*1134*35mm

Package: 32pcs / Pallet; 20Pallets / 40HQ
About Us

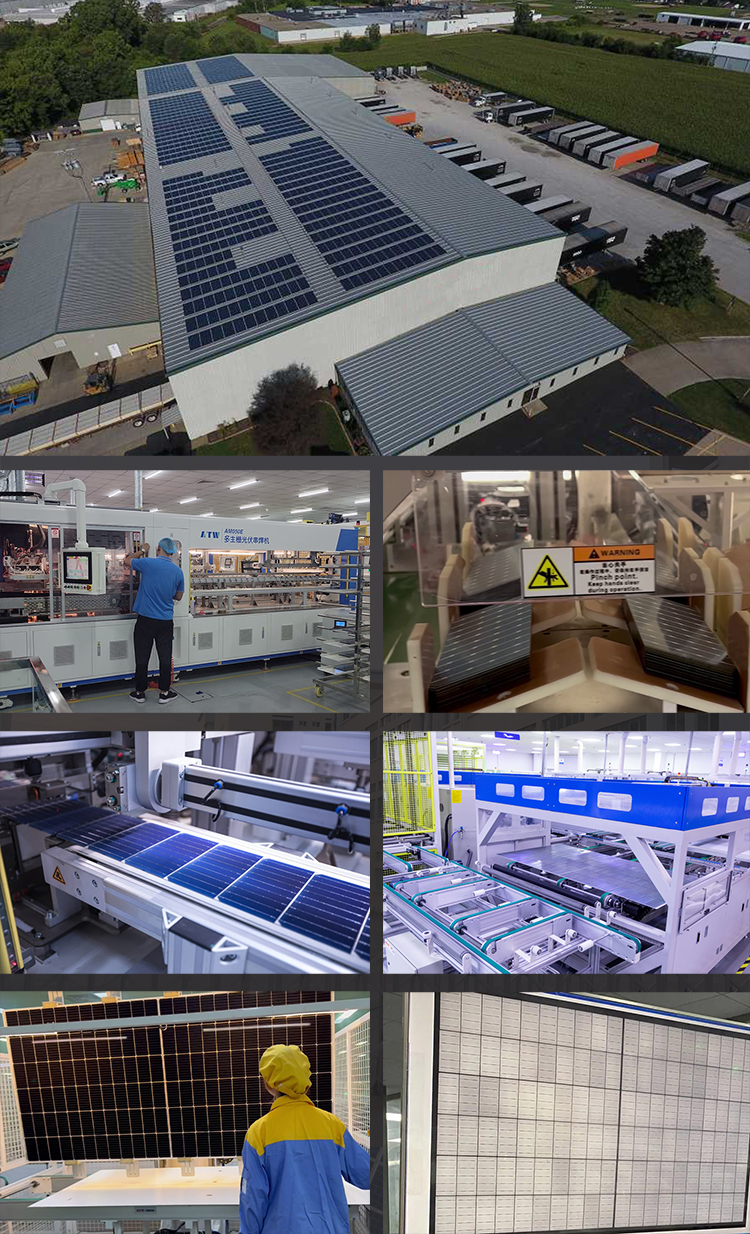

Super Factory

FAQ

Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.


Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler a
nd costs less. The amount of waste silicon is less compared to monocrystalline.

Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.

Q4: What is the warranty for solar panels?
A4: 5 years warranty on FGET-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
