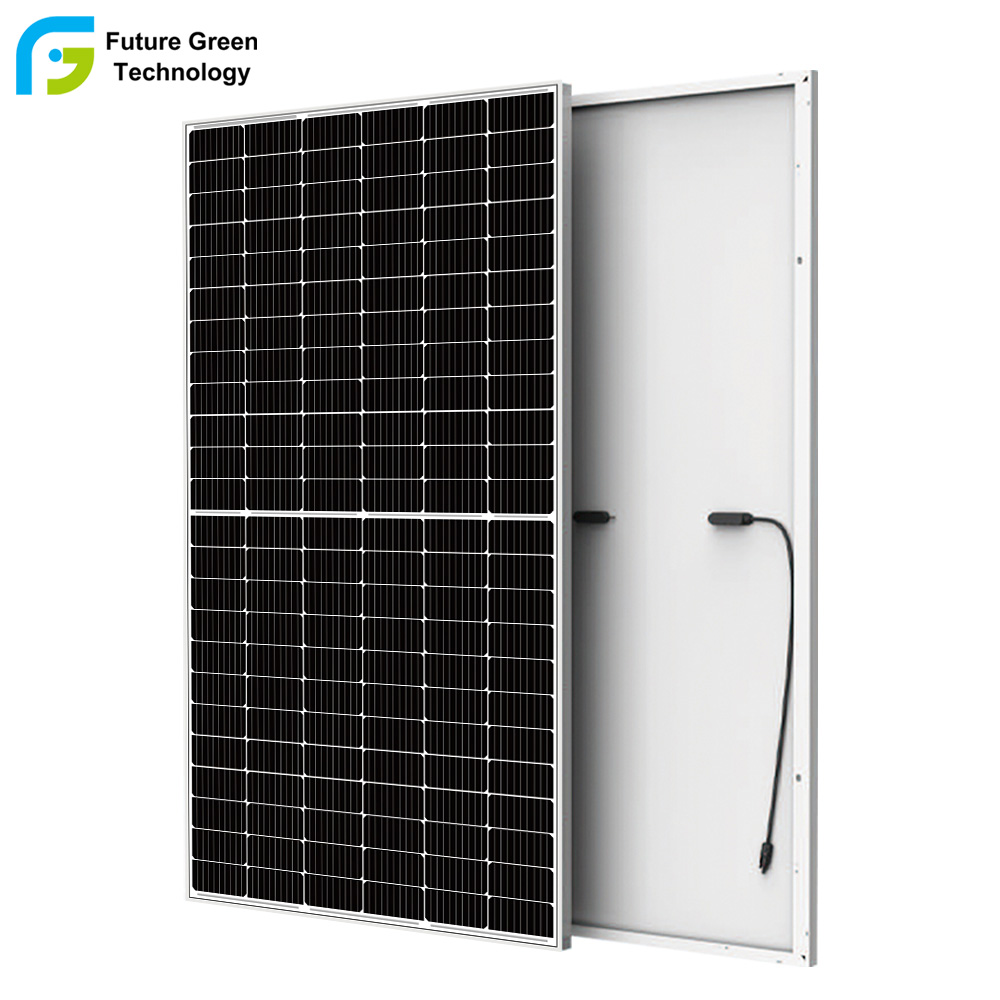

Half Cell Cut 144 166mm 182mm Solar Module Solar Energy Products 450W 550W 1000W PERC PV Mono Solar Panel On Sale

  • Max. Power: 550W
  • Cell size: 182mmx182mm
  • Type: Half Cell, PERC Panel
  • Panel Dimensions: 2279 x 1134 x 35mm

info@futuregreenbattery.com

Mobile/Wechat/WhatsApp: +8614737539687

Mobile/Wechat/WhatsApp: +8618718914921

Half Cell Cut 144 166mm 182mm Solar Module Solar Energy Products 450W 550W 1000W PERC PV Mono Solar Panel On Sale
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Specification

Half Cell Cut 144 Cell 182mm 450W 550W 600W Solar Module On Sale

Key Advantages

1. 144 monocrystalline half-cut PERC cells 182 x 91 mm, higher efficiency
2. All Black Design, nice appearance, reduce light pollution
3. Junction box Certified according to IEC 62790, IP 68 approved, 3 bypass diodes
4. Glass High transmission, Low iron, Tempered, ARC, Transparent, 3.2 mm



Datesheet:



Type
Mono
Power
550W
Size
2279 x 1134 x 35mm
Effectiveness
21.06%
Maximum working voltage
34.55V
Maximum working current
15.92A
Open circuit voltage
41.81V
Open circuit current
16.79A



Place of Origin: Guangdong, China Brand Name: FGET
Model Number: FG550W Cell size: 182mmx182mm
Type PERC Panel Dimensions: 2279 x 1134 x 35mm
Panel Efficiency:

20.6%

 Certificate: CE,ISO
Warranty: 10 years No. of cells: 144 cells arrangement
Packing: 32PCS/pallet;Packing size:2299x1154x1270MM Solar cell: Mono Cell 182*182mm



Series:



Module Plus
FG 400W
FG 450W
FG 500W
FG 550W
FG 600W
Module power (Pmax)
W
400
450
500
550
600
Open circuit voltage (Voc)
V
37.99
42.43
46.83
41.81
55.67
Short circuit current (Isc)
A
13.44
13.54
13.63
16.79
13.76
Maximum power voltage (Vmpp)
V
31.4
35.07
38.07
34.55
46.01
Maximum power current (Impp)
A
12.74
12.83
12.92
15.92
13.04
Module efficiency
%
20.51
20.70
21.06
21.28
21.48
Module size
mm
1724*1134*35
1907*1134*35
2094*1134*35
2279*1134*35
2464*1134*35
Cell Qty
Pcs
108
120
132
144
156
Cell Type
mm
MBB-182×91mm(Mono-Crystalline Silicon)



Detailed Introduction


PERC mono solar cells

> High efficiency MBB PV cell

> Uniform color

> Anti-PID

Glass

> Ture clear low iron glass

> Module efficiency is increased 2%

> Self-clean function

Frame

> Stock-size

> Silvery and black

> thickness 30/35/40/45/50mm

Humanized design

> More protection

> Prevent from scratching the hand



Junction box

> Quality diode ensures module running safety

> IP67 protection level

> Heat dissipation

Back sheet

>Low moisture permeability against snail trail defect
>High system voltage up to 1500v
Product packaging

Product Size: 2279*1134*35mm

Package: 32pcs / Pallet; 20Pallets / 40HQ
About Us

Super Factory

FAQ

Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.


Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler a
nd costs less. The amount of waste silicon is less compared to monocrystalline.

Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.

Q4: What is the warranty for solar panels?
A4: 5 years warranty on FGET-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
